FRP GRP fiberglass reinforced checker plate grating

  • FRP GRP fiberglass reinforced checker plate grating
  • FRP GRP fiberglass reinforced checker plate grating
  • FRP GRP fiberglass reinforced checker plate grating
  • FRP GRP fiberglass reinforced checker plate grating

FRP GRP fiberglass reinforced checker plate grating

    Packaging: According to customers' requirements
    Supply Ability: 2500 Square Meter/Square Meters per Month
    Port: All China Ports

Product Description

FRP GRP fiberglass reinforced checker plate grating

FRP GRP fiberglass reinforced checker plate grating

Product Description

FRP GRP fiberglass reinforced checker plate grating

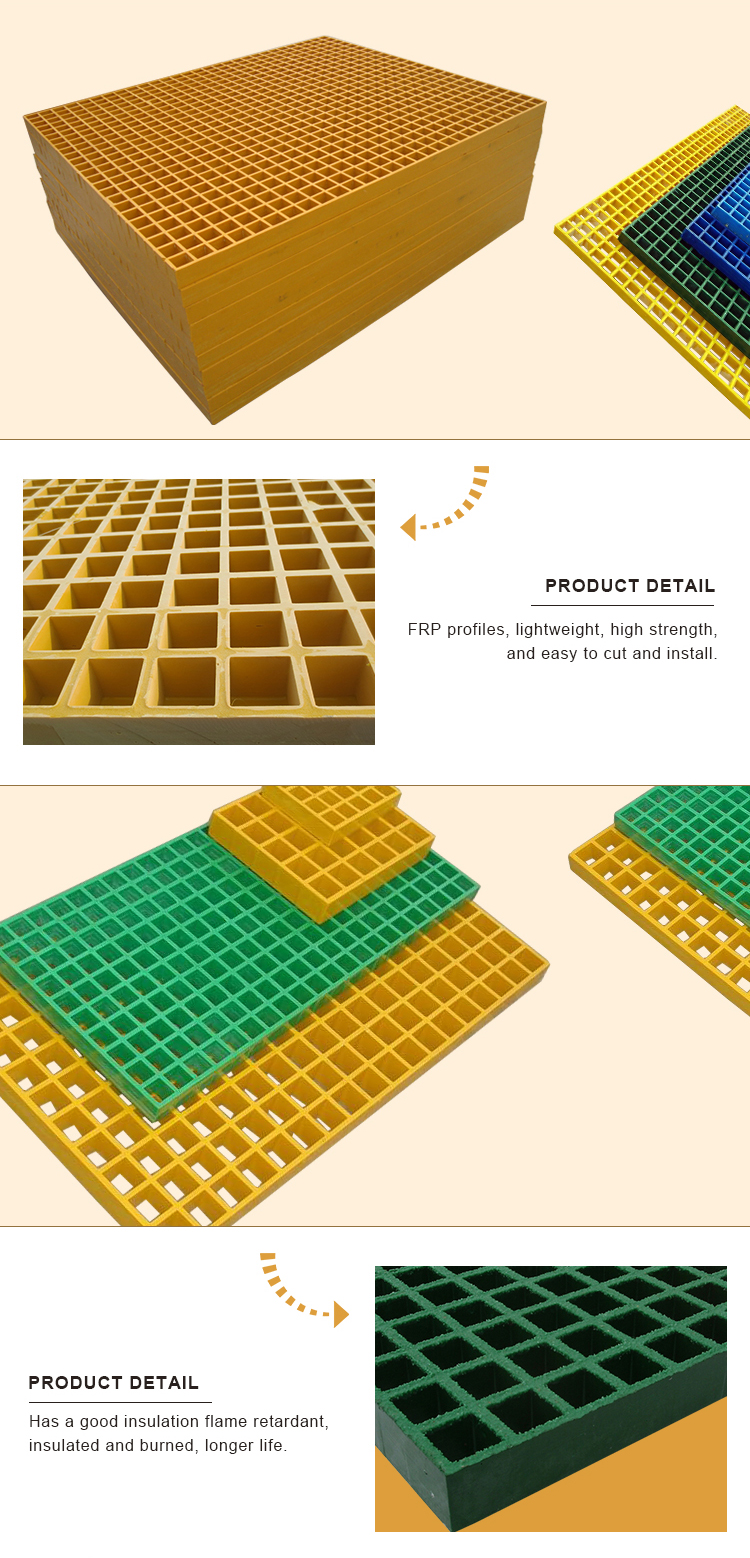

Molded grating is manufactured by laying continuous glass fibers in the mould in the direction of vertical and horizontal, and thoroughly wetted out with resin, layer by layer. When the weaving process is completed, the mould is heated to cure the panel. After curing, the panel is ejected from the mould. The standard panel would have meniscus (concave) top surface. Any process such as post applied grit could be bonded after as a secondary operation.

FRP GRP fiberglass reinforced checker plate grating

Product name

FRP Fiberglass molded grating

Material composition

Fiberglass roving,resin,filler

Resin type

GP, ISO, VE, PH

Color

Black , white , red , green , yellow , blue , grey or customized color

Surface

Smooth,GritFine grit,Concave,Grit cover,Chequer cover

Fabrication length

1007x3007,1220x3660,1007x4047

Certificate

ISO9001,SGS

Feature

Aging-Resistant,insulation,corrosion resistance

Size

Customised Size

Trade terms

EXW, FOB, CNF, CIF

Eco-Friendly

Yes

Shipping Way

By sea/air/express

FRP GRP fiberglass reinforced checker plate gratingFRP GRP fiberglass reinforced checker plate gratingFRP GRP fiberglass reinforced checker plate grating

Our company can be customized according to your request. The specifications list is for your reference, and you can contact us by phone or email.



Application

>> Industrial areas: such as chemical plants / plating plant operating platform, maintenance platform,photovoltaic power generation platform walkway

>> Sewage treatment areas: sewage treatment plant aisle and sealing cover

>> Municipal Engineering areas: Pedestrian Walkway, Trench / Cable Trench Cover, Tree Grating

>> Marine applications area: Boat decks or bridge materials, Offshore oil platform

>> Other civilian areas: such as car washing, cattle and sheep farms and so on

FRP GRP fiberglass reinforced checker plate grating

>>Washing liquid can be used to clean the dust and dirties on the surface, no need of other maintenance measures.

>> Avoid direct connection with naked fire and high temperature, such as electric welding.

>>Avoid the drag and impact damage from any steel, steel sharp tools, and the painting pollution.



Advantages

1. Corrosion Resistance
Different types of resin provide their own different anti-corrosion properties, which could be used in different corrosion circumstance such as acid, alkali, salt, organic solvent (in gas or liquid form) and the like over a long period.
2. Fire Resistance
Our special formula provide grating with excellent fire resistant performance. Our FRP gratings pass ASTM E-84 Class 1.
3. Light Weight & High Strength
The perfect combination of the continuous E-glass roving and thermosetting polyester resin provide grating with light weight and high strength and its specific gravity is only 1/4 of that of steel, 1/3 of aluminum. Different thickness and mesh size bring the client more choice.
4. Safety & Anti-slip
The high modulus of elasticity and various surfaces provided the super anti-skid performances. Its surface could be smooth surface, meniscus surface, grit surface and chequer plate cover which is suitable for different working places.
5. Electrical Insulating
High strength E-glass roving and high-grade resin provide the product super electric performance. Its electric break strength could reach 10KV/mm. There is no electric spark even when impact by tools, meanwhile it is non-magnetism. FRP Molded Grating could be used safely under the antiknock, diamagnetism and electric-resistance environments.
6. Aging Resistance
The high-grade resin and anti-ageing stabilizer provide grating long-life ageing resistant performance and the unique design make grating excellent self-cleanness function and keep its brightness and strength over a long time. The service life of grating could be 25 years.
